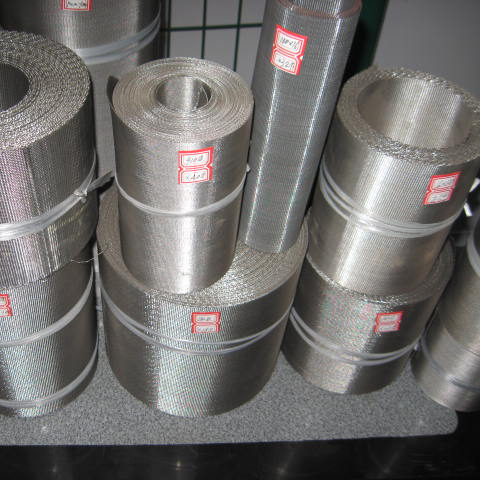

Reverse Plain Dutch Mesh
Stainless steel Reverse Plain Dutch Mesh also known as Stainless steel reverse Dutch belts are also known as stainless steel reversed Dutch wire mesh, auto mesh belt filter, reversed Dutch wire mesh, reversed Dutch mesh belt filter, and automesh belt filter, automatic belts strainer and etc..Reverse Dutch Weave Wire Mesh is woven into plain weave style however shute wires are taken in bigger diameter than warp wires.It results into producing extremely
strong mesh cloth with higher warp mesh count than shutemesh count.Reverse Dutch Weave Wire Mesh has higher tensile strength in both directions with smaller apertures and count of openings per surface unit as compare to plain
Dutch weave.The aperture size varies from 200 microns to 14 microns. This mesh cloth is commonly used as a filter cloth. The position and shape of openings increase particle retention and filter cake production.
Raw Material: Stainless steel wire 304, 304L, 316, 316L, other metal material can be customized.
Weave type: Reverse Plain Dutch Weave(RPD)
General Mesh:130 x32,175 x 45.250×40, 260×40, 280×70, 325×39, 600×125,720 x150 etc.
Roll width: 67mm, 95mm, 97mm, 127mm, 133mm, 150mm,157mm,300mm, 400mm, Max width 50cm
Roll length: 10m, 60” or 120' (Can be customized)
Our product maintains the highest quality standards and is ISO 9001:2008 certified. All of our wire mesh products can be supplied meeting ASTM standards. Many mesh sizes are also stocked for quick delivery.
Applications
Widely used as a filters media in Plastic wire drawing machine, stretch film machine, coating machine filters, plastic recycling filter, polymer melt filtration Filter for plastic, rubber, oil industry
Rubbed edges after slitting to help with tracking for Auto-Screen changers. High tensile Warp wire for Auto-Screen changers used in the Plastic Extrusion Industry.
Auto Plastic Extruder Reverse Dutch Weave Mesh Belt Reverse plain Dutch weave mesh is also used in applications requiring specific acoustic properties, mechanical robustness and high throughput for filtration.
