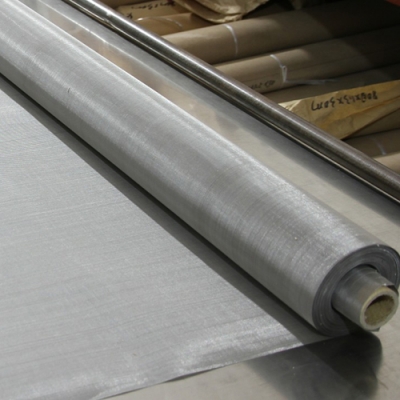

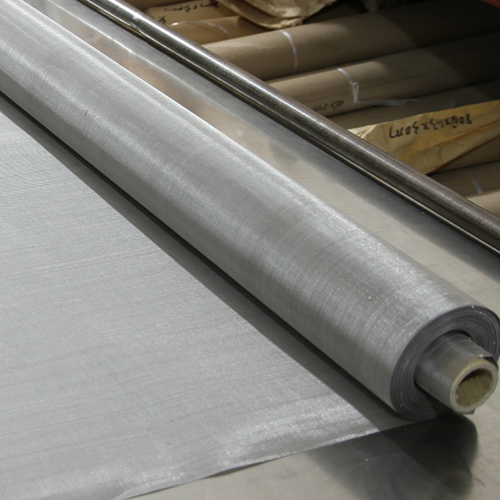

stainless steel Twill wire mesh

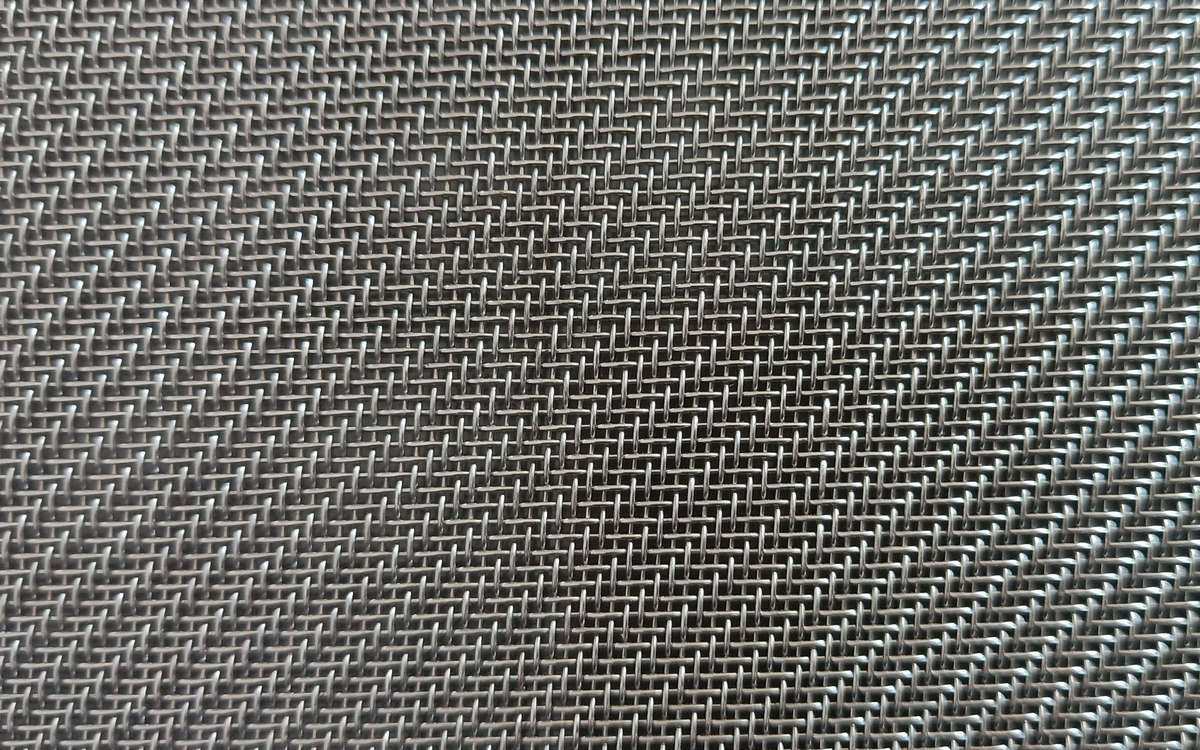

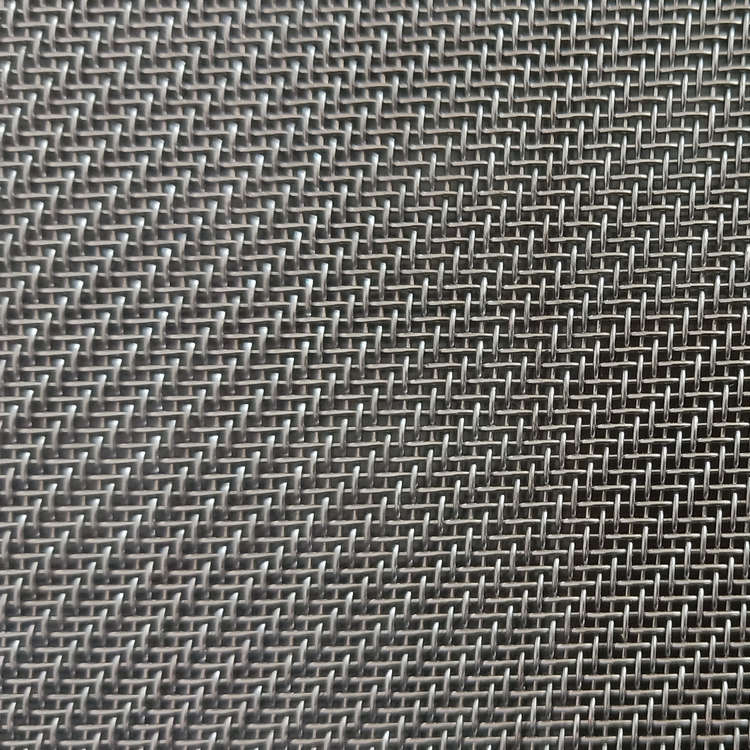

This is twill weave processing has the weft wires running over and under two warp in multiples. A basic twill might have the shute running over then under two warp wires at a time with the first doublet offset by one warp strand at the beginning of each pass.
forming a beautiful appearance.Twills weave can also incorporate more complex patterns as desired.Twill weave stainless steel wire mesh has corrosion and high temperature resistance.
 |  |
Specifications of twill weave stainless steel wire mesh:
Raw Materials: 304, 304L, 310, 316, 316L, 321 of SUS stainless steel or customized.
Width: 0.9144,1.0m,1.02m,1.22m.1.27m.1.3m.1.53m,1.57m.

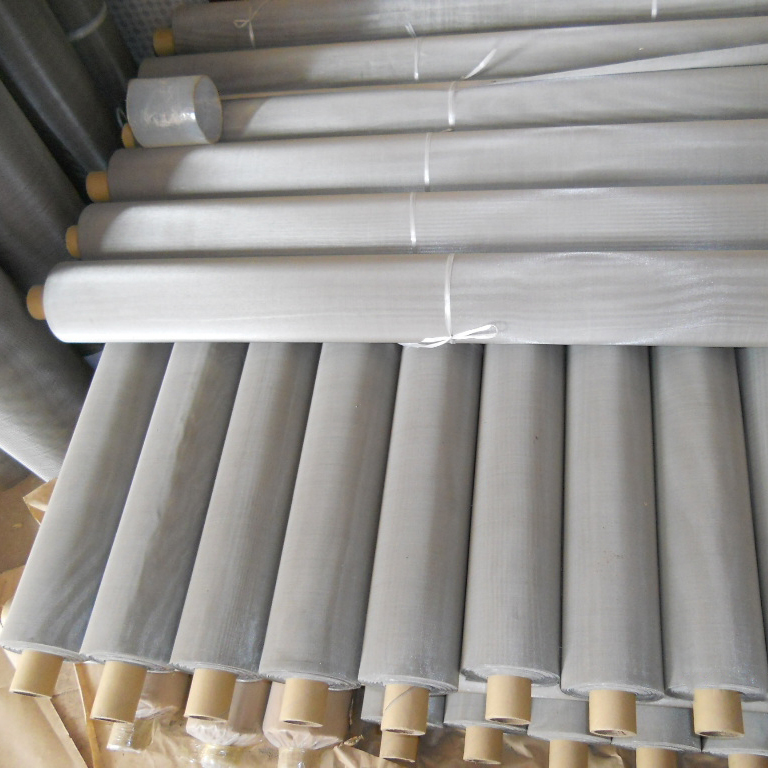

Roll length: 30.5m a roll or could customized.
Surface treatment: pickling and passivation, polishing.

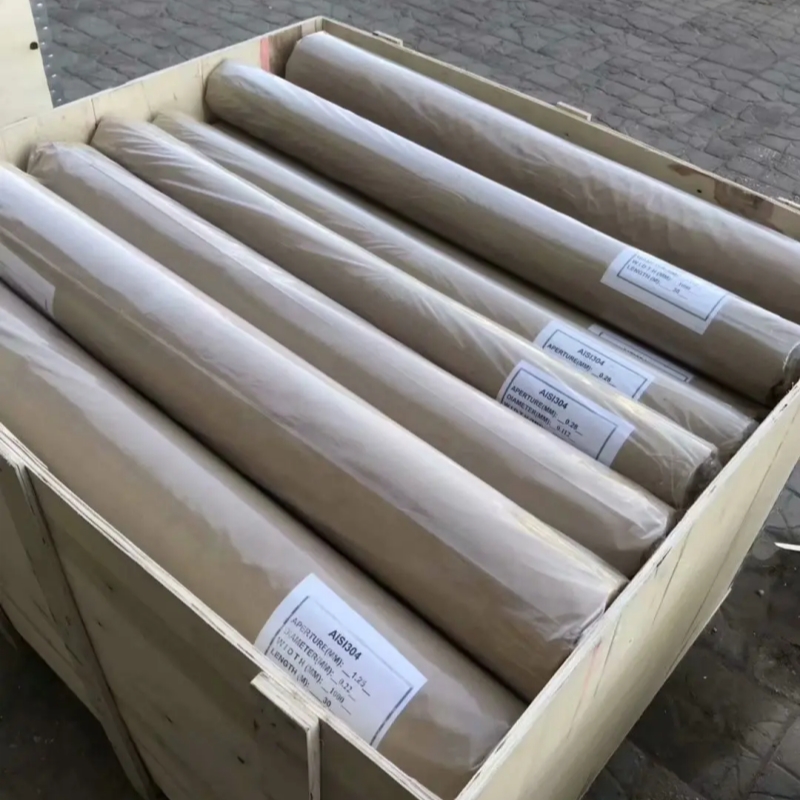

Packing:Rolls wrapped with craft paper and then put into Wooden box or on pallet;Sheets in wooden boxes or on pallets
Mesh Count (Warp xWeft) | Wire Dia. (mm) | Aperture (mm) | Micron(Rating) | Material (AISI) |
100 x 100 | 0.1250 | 0.1295 | 130 | 304 or316 |
120 x 120 | 0.0939 | 0.1168 | 117 | 304 or316 |
165x 165 | 0.0482 | 0.1041 | 104 | 304 or316 |
200 x 200 | 0.0584 | 0.0685 | 68 | 304 or316 |
250 x 250 | 0.0533 | 0.0482 | 48 | 304 or316 |
300 x 300 | 0.0355 | 0.0482 | 48 | 304 or316 |
300 x 300 | 0.0400 | 0.0431 | 45 | 304 or316 |
325 x 325 | 0.0355 | 0.0406 | 41 | 304 or316 |
350 x 350 | 0.0304 | 0.0431 | 43 | 304 or316 |
400 x 400 | 0.0304 | 0.0330 | 33 | 304 or316 |
500 x 500 | 0.0254 | 0.0253 | 25 | 304 or316 |
Twill weave stainless steel wire mesh features:
Superior corrosion and abrasion resistance;
Can resist to rust and bad weather;
High filter precision;
Durable and high strength;
Beautiful appearance.
Twill weave stainless steel wire mesh
Applications:
It can be made into filter or sieve element, and plays an important role in chemical, oil, mining, food processing industries.
Play a role in coal, glass, petroleum, textile, metallurgy industries;Made into decoration mesh.
