Stainless Steel Plain Dutch Mesh

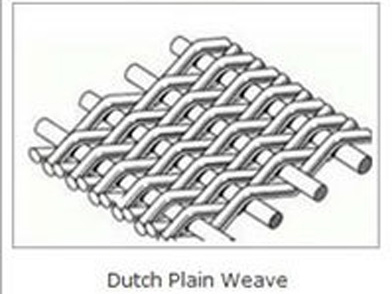

Stainless Steel Plain dutch weave wire Mesh is the combination of dutch weave and plain weave.The dutch weave wire cloth has different diameter in the weft and warp directions. Commonly the warp wire is coarser wire, which can supply the high tensile strength for the wire mesh. The weft wire is finer wire, which can ensure the excellent filtering performance.This unique structure with greater strength and finer openings is primarily used as a filter cloth.It has two sizes of wire diameters like the dutch weave. Each warp wire with coarse wire diameter passes alternately over and under one weft wire to supply high tensile strength for the netting.The weft wire with fine wire diameter alternately passes over and under one warp wire to form a fine opening for filtering.The plain dutch weave woven wire cloth is mainly used for filtering and separating liquid and slurry products.
Raw Wire material : SS316L,904L
 |  |
Specification:
Mesh per Inch (Warp X Weft) | Wire Diameter (Warp X Weft) | Material |
12mesh x 64mesh | 0.58mm x 0.40mm | 304,316,316L |
14mesh x 88mesh | 0.50mm x 0.33mm | 304,316,316L |
24mesh x 110mesh | 0.355mm x 0.25mm | 304,316,316L |
30mesh x 150mesh | 0.23mm x 0.18mm | 304,316,316L |
40mesh x 200mesh | 0.18mm x 0.14mm | 304,316,316L |
50mesh x 250mesh | 0.14mm x 0.11mm | 304,316,316L |
60mesh x 300mesh | 0.14mm x 0.09mm | 304,316,316L |
70mesh x 400mesh | 0.12mm x 0.08mm | 304,316,316L |
Features of the plain dutch weave wire cloth:
Greater mechanical stability.
Finer opening for better filtration efficiency and quality.
Coarser wire for higher tensile strength
Application
multitude of industrial applications.including chemical, sanitation, pharmaceutical, food processing of Edible oil,Bio diesel,Oleochemicals,Inks & resins,Gelatine,Sweeteners & sugars.
