Architectural Brass Woven Wire Grille For Furniture Display Cabinet Door Panels or Wine Cabinets
Architectural Brass Woven Grille for Furniture Cabinet door panels
Other Names: Brass Woven Decorative Mesh，Brass decorative mesh, copper wire woven mesh, metal woven decorative mesh. Some alternatives are made of stainless‑steel plated with brass, which achieves identical visual effect at a lower cost.
Product Features
1. Material: Woven from H65 brass wire. There are also stainless‑steel base versions finished with antique‑brass electroplating. Fire‑resistant, good anti‑rust performance, premium metallic texture with a matte vintage finish.
2. Weaving Technique: Plain crimped weaving. The mesh sheet is rigid and sturdy with uniform openings and fine texture. It allows light transmission while providing partial screening.
3. Main Applications
• Furniture: Cabinet door panels (replaces rattan), wine cabinets, display cabinet doors.
• Interior Decoration: Room dividers, screens, feature walls, ceiling panels.
• Speaker grilles, ventilation panels for equipment.
• Commercial Projects: Hotels, clubs, light‑luxury & neo‑Chinese style fit‑outs; also usable for electromagnetic shielding.
 |  |

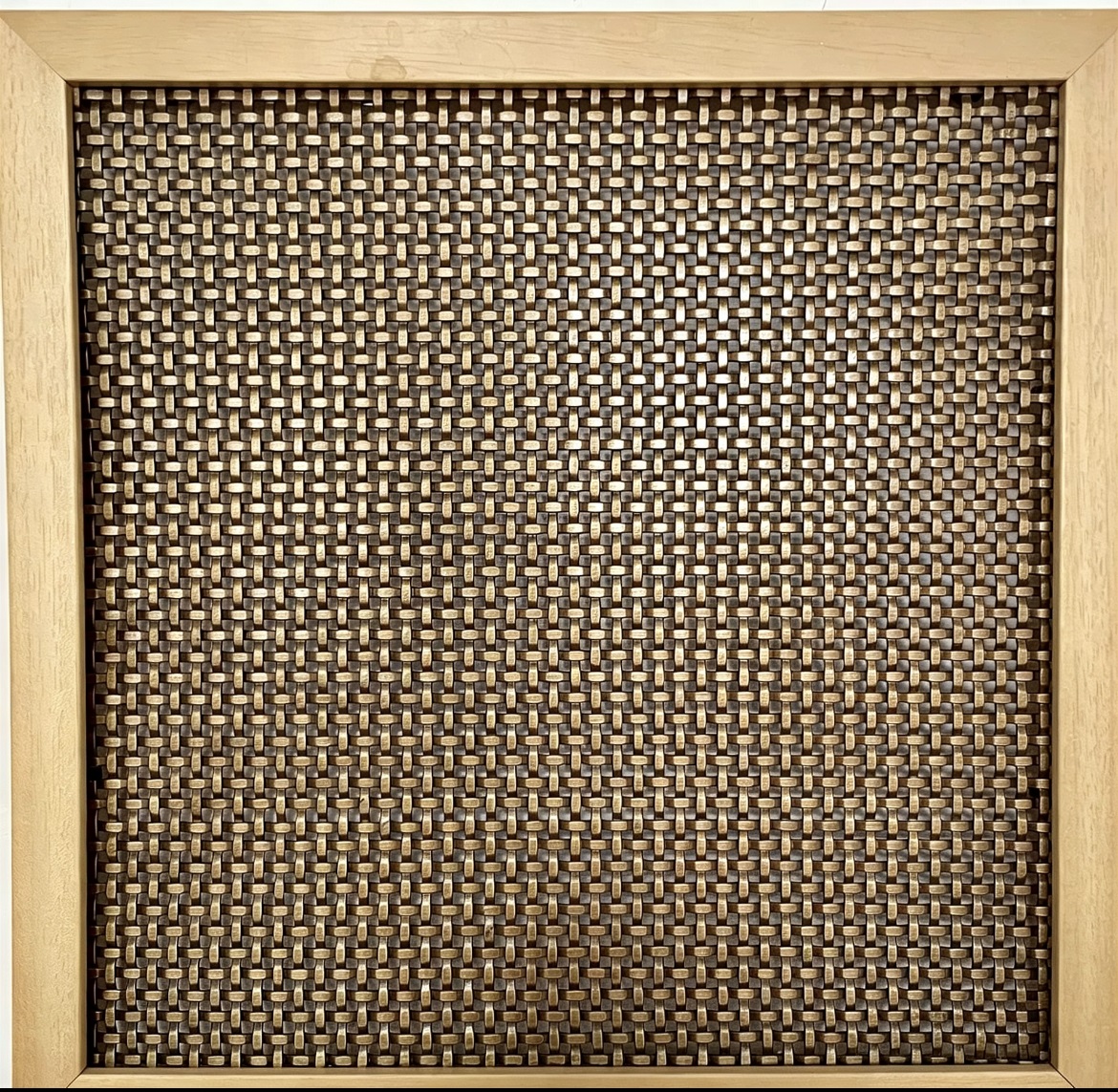

The picture shows a sample mounted inside a wooden frame.The image displays a sample in a wooden test frame. We can cut mesh panels to your required dimensions for direct installation into wooden or aluminum frames. It is an excellent alternative to natural rattan, delivering better moisture resistance, mould resistance and longer service life.
Customs orders size Eg:
The Flat Wire 1.2x 3.0mm x Holes size 4mm x4mm
The Flat Wire 1.2 x 4.0mm x Holes size 8mm x8mm
Size : 30" x 12", 18" x 12"
Common Specifications for Brass Woven Decorative Mesh (Cabinet Door Version)
• Material: H65 brass wire / 304 stainless‑steel with antique‑brass electroplating
• Weave: Plain crimped weave
• Wire diameter: 0.8‑1.5 mm (1.0‑1.2 mm recommended for cabinet doors)
• Aperture: 4‑8 mm square opening
• Mesh overall thickness: 1.8‑3.0 mm
• Open area: 35‑45%
• Weight: 3‑5.5 kg/m²
• Size: Standard roll width 1000 /1200 mm; custom cut‑to‑size panels available, laser edge cutting.
• Finish: Raw brass / antique aged brass / electroplated antique brass.
