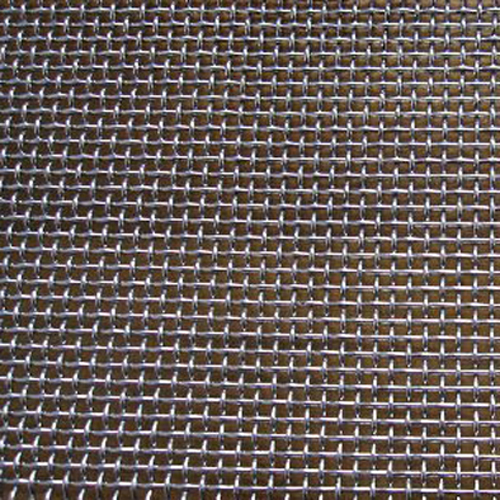

S S Woven Wire Screen
Stainless Steel Woven wire mesh also known as Stainless steel woven wire cloth, are woven on looms, a process that is similar to the one used to weave clothing. The mesh can consist of various crimping patterns for the interlocking segments.
This interlocking method, which entails the precise arrangement of the wires over and under one another prior to crimping them into place, creates a product that’s strong and reliable. The high-precision manufacturing process makes woven
wire cloth more labor-intensive to produce therefore it is typically more expensive than welded wire mesh.

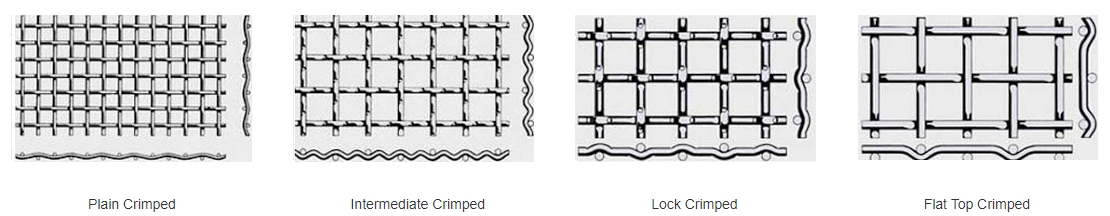

The Woven wire Woven Wire mesh panel Crimp Styles types :Plain crimped Weave/Double Crimp Woven Wire,Lock Crimp,Inter crimp,Flat Top
 |
Lock crimp: Lock crimp is comprised of pre-crimped wire featuring the formation of knuckles or bumps over intersecting sets of wires. This locks the mesh in place to create an extremely rigid product.
Double crimp: Double crimp wire mesh cloth exhibits a pattern of warp wires passing over and underfill wires.
Intercrimp: Commonly used for screens and architectural applications, intercrimp woven wire mesh provides superior strength and stability, while offering a rigid mesh solution.
Flat top: As the name implies, the flat top crimp style features a smooth top plane that facilitates the flow of materials.
Common Woven Wire Cloth Materials include:
Stainless Steel Wire 304
Stainless Steel Wire 304L
Stainless Steel Wire 316
Stainless Steel Wire 316L
Copper and Copper Alloys: Copper, Brass, Bronze, Phosphor Bronze
Mesh Size: 2mesh x 2mesh,4mesh x 4mesh ,6mesh x 6mesh ,8mesh x 8mesh,10mesh x10mesh.12mesh x12mesh.14mesh x14mesh and so on.
Open size:5mm x500mm
The Wire Diameter: 0.30mm-10.0mm
Edge :Cut edge or U types edge(Selvage Edge)
Stainless steel wire mesh, specifically Type 304 stainless steel, is the most popular material for producing woven wire cloth. Also known as 18-8 because of its 18 percent chromium and eight percent nickel components, 304 is a basic stainless alloy that offers a combination of strength, corrosion resistance and affordability. Type 304 stainless steel is normally the best option when manufacturing grilles, vents or filters used for the general screening of liquids, powders, abrasives and solids.
304 stainless steel has good corrosion and abrasion resistance.
316 stainless steel has excellent corrosion and abrasion resistance. Use it in food-processing applications; it is able to withstand corrosive solutions and harsh cleaning.
Stainless steel is the optimum solution for your woven mesh needs. By selecting stainless steel you will utilise its numerous benefits including:
✔ Long term performance
✔ Minimal maintenance
✔ Strength
✔ Life cycle costing
✔ Low environmental impact
Stainless Steel Woven Wire Screen is manufactured by weaving longitudinal and transverse wires together. Commercial / Industrial grade mesh also known as wire cloth and gauze is extensively applications and used for:
Industry for filtration, screening / sieving and food pressing/ drying
ultrasonic cleaning systems
Industry for Hollander Mesh & Bolting Cloth
Architecture for function and appearance both internally and externally
Bushfire Mesh part of your solution to bushfire protection
Window & Door Mesh part of your solution for stopping insects, intruders & ember
